The Features of Different Types of Concrete Mixer

Brief Introduction:Aiming at different project scale and concrete quality, there are different types of concrete mixers. What are they and what are their features? Lets have a look together.

Aiming at different project scale and concrete quality, there are different types of concrete mixers. What are they and what are their features? Lets have a look together.
Twin shaft concrete mixer
It is composed of two mixing shafts. The mixing system is composed of mixing blades installed in the spiral direction and mixing tanks. In terms of structural design, twin shaft mixer is more complicated than the single-shaft mixer, but the abrasion during use is relatively small, and the mixing efficiency and quality are very good during production.
In addition, the twin shaft mixer has a large capacity and a higher operating efficiency. Compared with the drum mixer with the same capacity, the mixing time can be shortened by more than half. Since its material movement area is located above the discharge door, the discharge time of the double-shaft mixer is also shorter than other models.
Planetary concrete mixer
The advantage of the vertical shaft planetary mixer over the twin-shaft mixer is that its mixing arm is more complex and denser, there is no dead corner in the overall mixing. The material is stirred more fully, and there is no problem of shaft end sealing, which is very suitable for high performance concrete.
It is mainly used in the fields of pipe piles, prefabricated components, ceramsite, brick making, etc, but it is less used in the concrete batching plant.

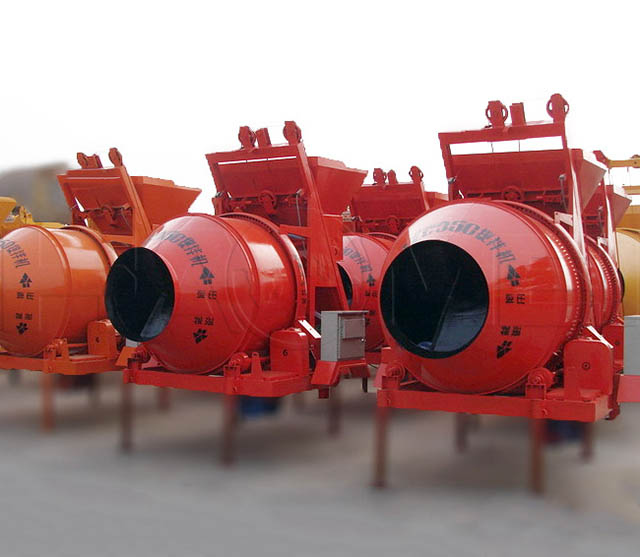

portable concrete mixer
Portable concrete mixer
According to the actual requirements of customers, JDC350, JDC500, and JZC500 can all produce portable concrete mixer, which generally include locomotive heads, head frames, walking wheels, and power systems that can complete the forward and reverse power output. There is a mixing drum and a transmission mechanism on the frame.
The portable concrete mixer is of simple structure and low investment cost. It is an economical and practical concrete mixing equipment that can produce the common concrete kinds. The concrete quality can satisfy the requirements of small projects.
