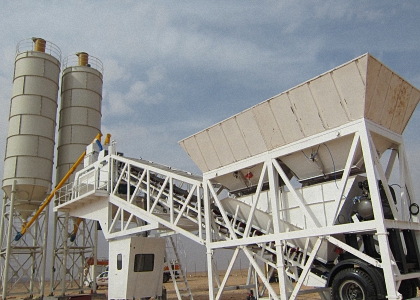

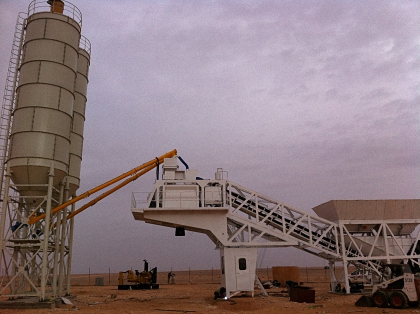

Mobile concrete batch plant with modular design, mobile and flexible, easy assembly, fast, free special basis, free debugging. From installation to use only three days. Control rooms, laboratories, maintenance rooms readily available, cost savings, is the ideal equipment for construction.
1. The use of high-performance
forced concrete mixers for supporting the host. With a stirring speed, mixing a wide range of concrete quality, and other significant advantages. Can be the greatest degree of satisfaction of different user needs;
2. The use of access to national patent point of feeding (patent number ZL200520022852.7) technology to ensure that the dynamic measurement accuracy of ± 1%;
3. Adopt the national patent admixture weighing scale pneumatic conveying device (Patent No .: 200820134501.9) metering and conveying additives, completely avoid the admixture system failure caused by the quality of concrete accidents;
4. Equipped with touch screen, computer, two sets of operating systems, manual, semi-automatic, automatic three kinds of work. To ensure reliable operation of equipment;
5. Comprehensive consideration of the requirements of concrete technology, functional readily available. Automatic compensation of gravel water content, under-scale, super-scale alarm correction, formula online modification, data preservation, query, report, print and other functions;
6. Use of aviation fast plugs, factory pre-commissioning to ensure that the installation, commissioning quickly and reliably.
Models and Technical Specifications
|
Specification |
Value |
|
Productivity in theory(m3/h) |
60 |
|
Weighing scale Concrete(Kg) |
3000 |
|
Weighing scale Cement(Kg) |
720 |
|
Weighing scale Water(kw) |
360 |
|
Weighing scale Liquid addictive(kg) |
36 |
|
Overall power(KW) |
about 60(optional parts not included) |
|
Power source(V/ HZ) |
380/50 |
|
Discharging height(M) |
3.8 |
|
Overall weight(T) |
20 (optional parts not included) |
|
Trail speed(km/h) |
≤40 |
|
Specification(LxWxH) During work(M) |
17x3.6x8.2 |
|
During transportation(M) |
17.6x2.4x4.35 |
