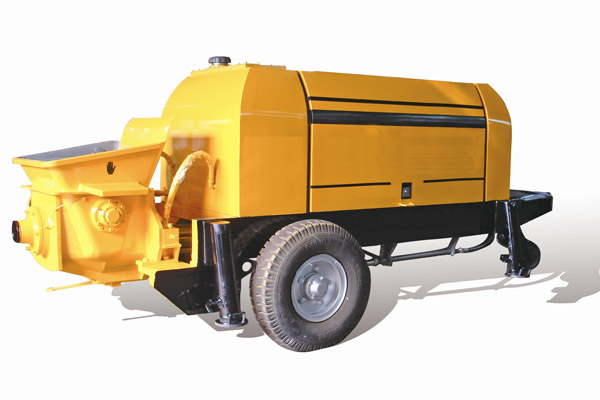

HBT60 trailer concrete pump is a new design of the construction machinery for high-capacity concrete delivery to a specific location. As a leading manufacturer of trailer concrete pump, Haomei ensures the machines are of high quality and good reliability. With its advantages, the trailer concrete pump has occupied a large market in the world.
We provide two power models, one is the power system and another is the diesel power generation system. Two power systems have different advantages, according to the actual needs to make choice.
Trailer concrete pump always require a number of major components to work together, such as hydraulic systems, lubrication systems, power systems and distribution systems. Each component uses advanced technology. Users can rest assured to buy.
Features of Trailer Concrete Pump
1. High-level and long-term project requirements for high delivery pressure;
2. With anti-pump function, can eliminate the obstruction of the fault, a reliable shutdown within a short time;
3. Use the S-valve to change direction for fine-grained concrete delivery;
4. Mixer and pump can be used at the same time, also can be used alone;
5. Full hydraulic pump system to ensure stable performance.
Models and Technical Specifications
|
Specification |
Value |
|
"Theory Concrete Output (Low / High Pressure)"(m3/h) |
60 |
|
"Concrete Pressure (Low / high pressure)"(Mpa) |
13/7.4 |
|
Hydraulic system pressure(Mpa) |
32 |
|
Rotation speed(r/min) |
1480 |
|
High / low pressure switch |
Yes |
|
Distribution valve(S) |
valve |
|
Pumping cylinder diameter/ Stroke(mm) |
195/1500 |
|
Main oil pump discharge(ml/r) |
110 |
|
Diesel engine(kw) |
112 |
|
Voltage/ Frequency(V/Hz) |
380/50 |
|
Hydraulic tank volume(L) |
400 |
|
Height of adding material(mm) |
1355 |
|
Hopper volume(m3) |
0.8 |
|
Total mass(kg) |
5800 |
|
Concrete slump(mm) |
120-230 |
|
Aclinic Delivery distance(m) |
1200 |
|
Theory vertical pumping height(m) |
250 |
|
Dimension: L*W*H(mm) |
6240*2110*2550
|
