Concrete Batching Plants Official Website for Haomei Machinery

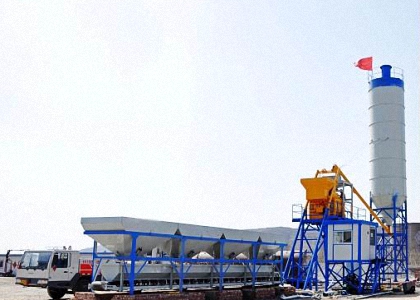

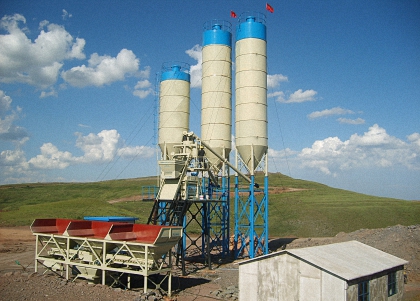

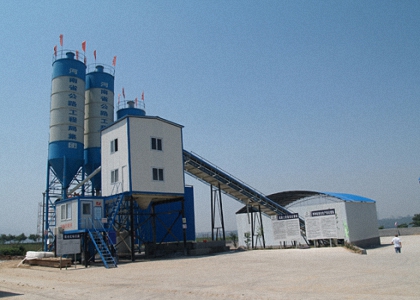

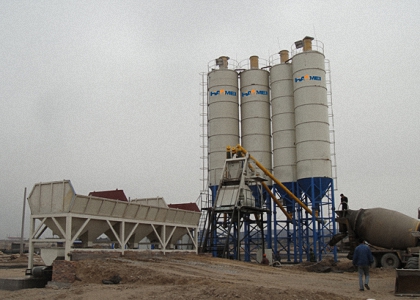

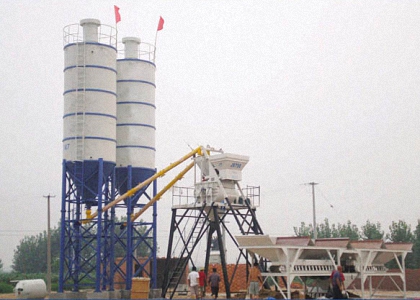

Stationary concrete batching plant will meet the expectations of high-quality and high-performance concrete mixers for large projects. As an experienced manufacturer and exporter of stationary concrete batching plant, Haomei provides a variety of fixed-batch equipment to meet different customer needs.
| Type | HZS25 | HZS35 | HZS50 | HZS75 | |
| Theoretical production capacity(m3/h) | 25 | 35 | 50 | 75 | |
| Concrete mixer | Type | JS500 | JS750 | JS1000 | JS1500 |
| Power(KW) | 24.75 | 38.6 | 51 | 65.5 | |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 | |
| Aggregate Bin volume(m3) | 3.2 | 7.3 | 8.3 | 12 | |
| Weighing Accuracy | Aggregate (KG) | 1500Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4500Kg ±2% |
| Cement(KG) | 300Kg ±1% | 450Kg ±1% | 600Kg ±1% | 1500Kg ±1% | |
| Fly ash(KG) | 400Kg ±1% | 600Kg ±1% | |||
| Water (KG) | 200Kg ±1% | 200Kg ±1% | 400Kg ±1% | 600Kg ±1% | |
| Additive(KG) | 30Kg ±1% | 50Kg ±1% | 50Kg ±1% | ||
| Total power(KW) | 45Kw | 60Kw | 115Kw | 110KW | |
| Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | 3.8m | |
| Gross weight(T) | 7.7 | 15 | 40 | 50 | |
