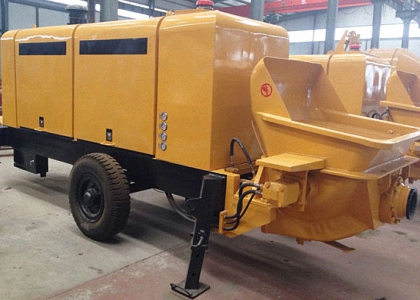

We are one of the professional diesel concrete pump manufacturers in China. With many years of experience, we have always tried to make our diesel concrete pump has good quality and high performance. Diesel concrete pump is designed to meet international standards, so the market is very popular. When it comes to function, diesel concrete pumps are used to pour concrete into long-distance or top-level sites. Now, our machines have been sold well in foreign countries and enjoy a good reputation.
Diesel concrete pump uses the diesel engine. In some areas of power shortage, diesel concrete pump is a good choice.
Diesel concrete pump is ideal for bridges, roads, urban construction and other construction site. In addition, high-quality, can transport concrete mortar, mud mortar and fine aggregate aggregate.
1. Hydraulic systems extend component life, improve equipment reliability, reduce failure rates, and reduce maintenance costs;
2. High delivery pressure to meet the needs of high-level and long-distance engineering;
3. Small body light, easy to move, suitable for small construction projects;
4. High-quality wear-resistant alloy components, long service life;
5. The use of international water-driven wet-jet technology.
Models and Technical Specifications
Specification |
Value |
"Theory Concrete Output (Low / High Pressure)"(m3/h) |
80 |
"Concrete Pressure (Low / high pressure)"(Mpa) |
12.5/5.28 |
Hydraulic system pressure(Mpa) |
32 |
Rotation speed(r/min) |
1480 |
High / low pressure switch |
Yes |
Distribution valve(S) |
valve |
Pumping cylinder diameter/ Stroke(mm) |
200/1800 |
Main oil pump discharge(ml/r) |
224 |
Motor power(kw) |
110 |
Voltage/ Frequency(V/Hz) |
380/50 |
Hydraulic tank volume(L) |
500 |
Height of adding material(mm) |
1400 |
Hopper volume(m3) |
0.7 |
Total mass(kg) |
6200 |
Concrete slump(mm) |
120-200 |
Aclinic Delivery distance(m) |
1000 |
Theory vertical pumping height(m) |
250 |
Dimension: L*W*H(mm) |
6680*2210*2150 |
