Concrete Batching Plants Official Website for Haomei Machinery

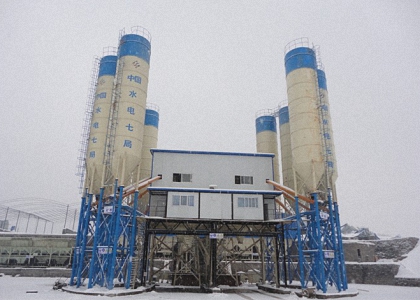

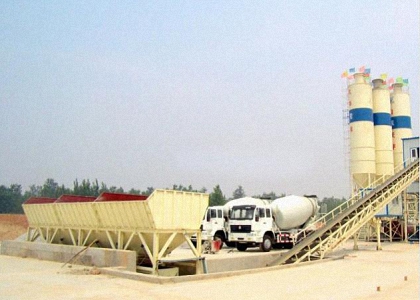

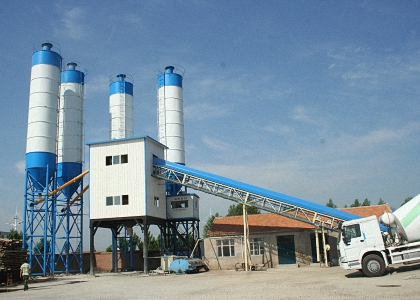

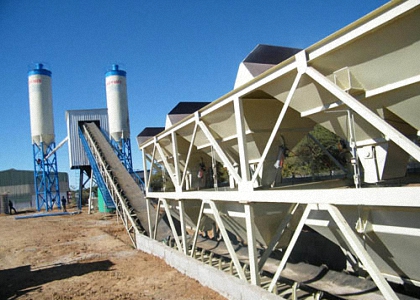

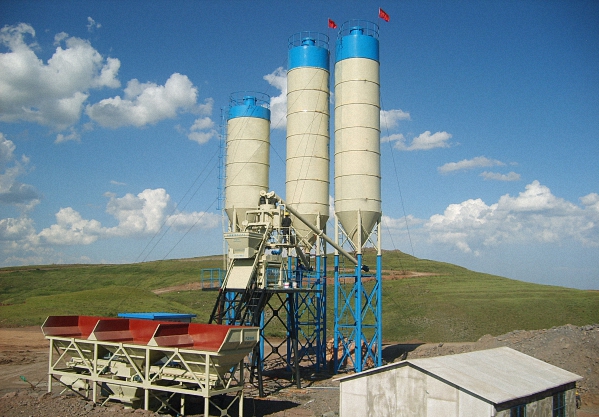

Dry concrete batching plants of Haomei machinery manufacturer , also known as ready mix concrete batching plants. It sells well.
Our company is a professional manufacturer and supplier of dry concrete batching plants. As an exporter, our goal is to sell high quality dry concrete batching plants to customers worldwide.
In addition, we also ensure that the provision of comprehensive after-sales service to meet the various requirements of customers. Dry concrete batching plants are versatile and can therefore be used in construction, civil engineering, roads, railways, bridges, electric power, airports or as commercial concrete mixing plants. Dry concrete batching plants with twin shaft batch mixer, weighing by the material system, transportation systems, storage systems, control systems. Each part of the use of advanced technology and technology.
Features of Dry Concrete Batching Plants
1. Machine controlled by the computer, can be automatically controlled and manual operation.
2. Aggregates are measured separately or accumulated by an electronic scale.
3. Matching ratio of storage and automatic fall compensation function can realize mixing process.
4. The main equipment used twin shaft batch mixer, can produce plastic, dry mix and other concrete.
5. Mixing time is short, uniformity, and reliable operation.
6. High efficiency, long service life.
Models and Technical Specifications
| Type | HZS25 | HZS35 | HZS50 | HZS75 | HZS100 | |
|
Theoretical production capacity(m3/h) |
25 | 35 | 50 | 75 | 100 | |
|
Concrete mixer |
Type | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Discharging capacity(L) | 500 | 750 | 1000 | 1500 | 2000 | |
|
Aggregate size (Pebble/Macadam)(mm) |
80/60 | 80/60 | 80/60 | 80/60 | 80/60 | |
| Matched Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PL2400 | PLD3200 | |
|
Weighing Accuracy |
Aggregate (KG) | 1500Kg ±2% | 2000Kg ±2% | 3000Kg ±2% | 4500Kg ±2% | 4500Kg ±2% |
| Cement(KG) | 300Kg ±1% | 450Kg ±1% | 900Kg ±1% | 1500Kg ±1% | 1500Kg ±1% | |
| Fly ash(KG) | 500Kg ±1% | 600Kg ±1% | 600Kg ±1% | 600Kg ±1% | 1500Kg ±1% | |
| Water (KG) | 200Kg ±1% | 300Kg ±1% | 600Kg ±1% | 600Kg ±1% | 1000Kg ±1% | |
| Additive(KG) | 20Kg ±1% | 30Kg ±1% | 100Kg ±1% | 100Kg ±1% | 100Kg ±1% | |
| Discharging height(M) | 3.8 m | 3.8 m | 3.8 m | 4.1m | 4.1m | |
