Mobile Concrete Mixing Station

  • Brand: Haomei Machinery
  • Condition: New
  • Certification: CE,ISO9001
  • Pay Method: L/C or T/T
  • Delivery Time: 5-15 days
  • Delivery Port: Qingdao or Tianjin port, China
  • Installation Time: 20-30 days after received deposit
mobile concrete batching plants

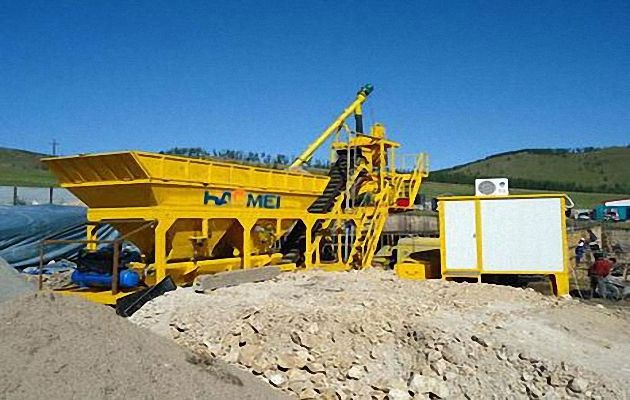

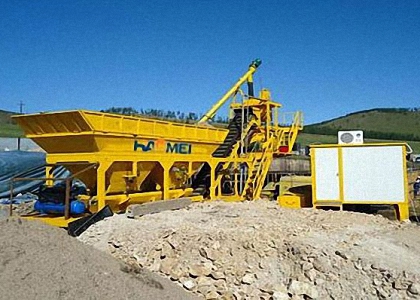

YHZS75 mobile concrete mixing station is a concrete production equipment which integrates the material storage, weighing, conveying, stirring, unloading and automatic control system of the concrete mixing station with a trailer unit. It is combined with all the fixed automatic mixing stations is same with operation and maintenance. The same time with mobile and flexible, quick and easy disassembly, storage management is simple and other unique features. Mobile concrete mixing station is the railway, bridges, ports, hydropower projects such as mobile construction of the best excellent machine type.

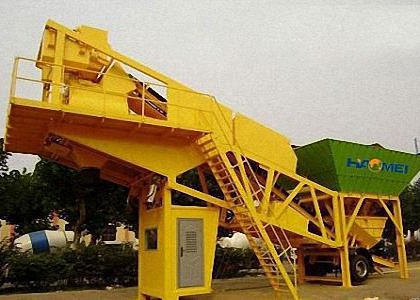

Structure of Mobile Concrete Mixing Station
1. Chassis chassis: Cantilever-like mixing host chassis, the chassis contains trailer truck traction pin, parked legs; chassis placed mixer, cement and water admixture of measurement, said the surrounding inspection patrol station, railings, etc. .

2. Control room: The control room is at the bottom of the host chassis, equipped with automatic control system of the mixing station. The control system is the same as the fixed mixing station. The control room acts as the front supporting point of the whole station and the control room is taken away. Stored in the stent space; all of its control lines without demolition.

3. Aggregate metering: This system is located at the rear end of the whole station, the upper is the aggregate (sand, stone) storage hopper, storage hopper can be divided into 2 or 4 grid, and set up high plate to increase storage capacity, Pneumatic operation in turn open the door, aggregate measurement for a variety of materials cumulative measurement. The bottom is equipped with a walking bridge and a working leg.

4. Belt Conveyor Rack: This rack is a truss structure which connects the chassis of the host machine and the aggregate proportioning frame. The main frame, the belt frame and the batching frame are integrated to form the main structure of the whole mobile mixing station.

5. Peripheral components: for the cement silo and screw conveyor, peripheral components, whether working or transport are integral parts, without dismantling the whole transport, disassembly.

6. Stirring machine: the general use of JS-type forced mixer, mixing can be completed quickly and even flow of dry and hard concrete.

Features of Mobile Concrete Mixing Station
At present, mobile concrete mixing station is divided into traction and trailer-type two, traction chassis contains a complete front and rear axle; trailer-style chassis is only the rear axle, the front placed in the tractor saddle bridge.
1. Removable fast and Easy to move
Transfer: In addition to the screw conveyor, cement warehouse, the entire mixing station can drop the front end of the towing mobile; other, such as walking, plus high plate off, all the control cable without demolition. Removal of accessories can be taken away with the station.

Mobile concrete mixing station equipped with tires, traction pin, traffic signal devices, braking systems, trailers allow maximum speed of up to 50 km / hour.

Installation: Should be flat hardening of the ground and disassembly required 30 tons crane with.

Storage: If the device is not used temporarily, to maintain the state of transit transport.

2. Other properties and mode of operation, with the principle of fixed-standard mixing station.

3. All components of mobile concrete mixing station transport unit dimensions are less than the container empty size requirements, the whole station to transport three 40-foot container.

Models and Technical Specifications
Specification
Unit
Value
Theoretical productivity
m3/h
75
Weighing scale Concrete
Kg
3750
Weighing scale Cement
Kg
900
Weighing scale Water
Kg
450
Weighing scale Liquid addictive
Kg
45
Overall power
KW
about105
Power source
V/ HZ
380/50
Discharging height
M
3.8
Overall weight
T
27 (optional parts not included)
Trail speed
km/h
≤40
Specification(LxWxH)During work
M
18.1x3.6x8.2m
During transportation
M
18.6x2.4x4.35m
