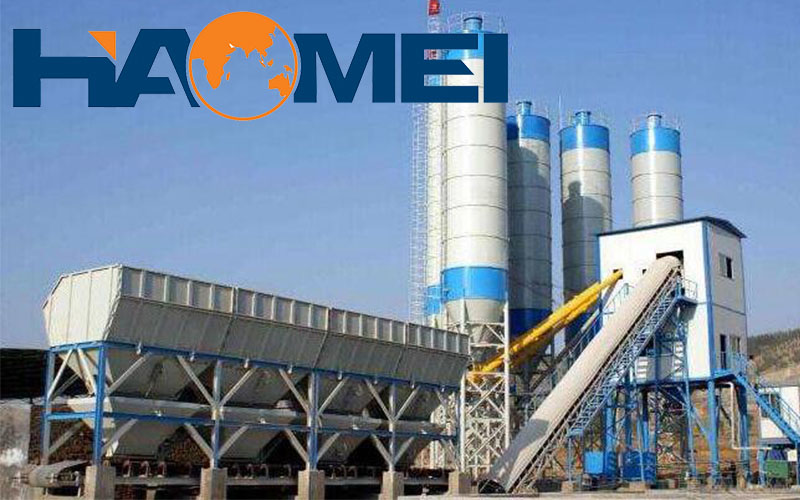

How Much Is an HZS120 Concrete Batching Plant

Brief Introduction：To get a clear answer to price of HZS120 concrete batching plants, you should take all possible factors into account.

　　The cost of concrete batching plant entails investment in both the equipment and manual work. As for HZS120 concrete batching plants, there are single plants and double plants. The latter means two sets of components for a HZS120 plant work together, and thus the integrated theoretical capacity of such a plant is 240 cubic meters per hour. To get a clear answer to price of the plant, you should take all possible factors into account.

　　A single HZS120 concrete batching plant consists of a JS1200 mixer, a PLD3200 distributor, four silos, four screw conveyors, a whole set of weighing system and another set of control system. Four silos are a typical configuration. You can choose capacities of 100 tons or 50 tons, but you are recommended to select 50-ton silos from an economical point of view. If you plan to use the plant on your own projects, just choose components in accordance with your specific requirements. If, on the other hand, you will use it as a commercial plant, you’d better design it as required by the market. The fact is that no HZS120 plant can realize a yield of 120m3 in practice, because the productivity is influenced by so many uncontrollable factors. It’s hard to provide a specific price which varies from supplier to supplier, but a price for reference is about 400,000 dollars.

　　It’s not so difficult, however, to give an estimated price for a double HZS120 concrete batching plant. The configuration of such a plant is similar to that of a single 120 plant, including systems for mixing, conveying, weighing, distributing and controlling. The only difference lies in quantity of mixers. The single plant is equipped with one JS2000 concrete mixer vehicles, while the double plant has two. Since such a plant is usually for commercial usage, you will have to equip it with at least one concrete pump truck and 10 concrete mixer trucks, which can be rented as well. The raw material for the first stage costs about 1 million RMB. An approximate cost for the whole set above is 2.3 million dollars.
