Cement Silos

  • Brand: Haomei Machinery
  • Condition: New
  • Certification: CE,ISO9001
  • Pay Method: L/C or T/T
  • Delivery Time: 5-15 days
  • Delivery Port: Qingdao or Tianjin port, China
  • Installation Time: 20-30 days after received deposit
mobile concrete batching plants

The cement silos is used for on-site storage of bulk cement containers. The cement silos usually works with the concrete batching plants on the construction site. This type of silo can also be used to store other aggregates such as lime, fly ash, sand, clinker, and the like.

As a manufacturer of professional cement silos, Haomei offers a variety of capacity and size of the bolt-type and welded storage silo. A specially designed bolt cement silo minimizes transportation costs.

Features of Cement Silos
1. Mainly used for concrete mixing station cement tank;
2. It can be equipped with level indicators to monitor the level and quantity of materials;
3. Through the screw conveyor to make the material can be transported to a certain location;
4. Environmental design: with a filter to reduce air pollution;
5. The perfect seal ensures efficient performance;
6. Bolt cement silos are particularly suitable for loading containers and exporting overseas.

Cement Silos Composition:
Steel parts of the warehouse, ladder, guardrail, feeding tube, dust collector, pressure safety valve, level meter, discharge valve.

Dust removal system, broken arch device, level device description
1. The dust removal system: cement | cement tank top with electric dust removal device, which can effectively absorb suspended particles in the warehouse to reduce the pollution of the surrounding environment.

2. Broken arch device: Cement silos under the cone is equipped with blowing gas arch device, the use of gas control box is located in the small electromagnetic valve control the release of compressed air for cement and a variety of powder broken arch, to avoid Powder accumulation, causing blockage.

3. The level of equipment: Cement silos level device can be perceived warehouse material storage height.

Structural of Cement Silos:

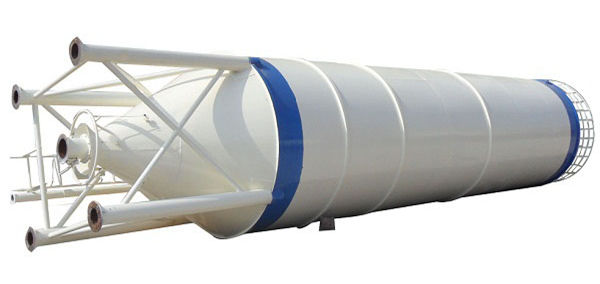

Cement silos for the cylindrical structure, the bottom of the four legs of the tube support the entire body, the whole position for all steel structure, welded together; top with dust and pressure safety valve.

1. Cement silo is usually used as a concrete mixing plant (building) supporting the use of products.

2. It is suitable for installing bulk cement and dry fly ash. It has the characteristics of rainproof, moisture proof and easy to use. The size can also be made according to customer's requirement.

3. Generally the cylinder support structure, the upper part of the dust removal equipment to prevent dust leakage, the lower part of the broken arch device to prevent powder agglomeration, the powder discharged smoothly, and equipped with level sensor equipment, can keep the warehouse Material usage.

4. Generally used in bulk cement mixer truck to powder gas into the warehouse; According to the different structure of the cement warehouse, unloading generally have two ways, one is connected with the lower part of the screw conveyor, with a screw conveyor powder into the powder Measurement, and the second is the use of pneumatic conveying (for the special structure of the cement tank).

Models and Technical Specifications
Types: Capacity Steel Thickness (mm) Discharge Mouth Height (mm) Diameter (mm) Tank Height (mm) Total Height (mm) Containers Need
Welded Silo 50T Q235 6-6-4-4-4-3-3 7400 2150 11429 19829 1 40HQ
Bolted Silo 100 T Q235 6-6-5-4-4-3-3 7400 3000 12146 21056 1 40HQ
120T Q235 8-8-6-5-4-4-4 7400 4000 10186 19578 1 40HQ
150T Q235 8-8-6-6-4-4-4 7400 4000 11428 20428 1 40HQ + 1 20GP
200 T Q235 8-8-5-5-4-4 7400 4500 13168 216320 1 40HQ + 1 20GP
300 T Q235 12-12-10-8-6-5-4 7400 7400 152369 244860 2 40HQ
400 T Q235 14-12-10-10-8-6-4 7400 7400 135268 211060 2 40HQ
500 T Q235 16-14-10-8-8-6-5 3000 3000 15860 208220 2 40HQ + 1 20GP
